Our Products
Manhole cover material: aviation deformed aluminum alloy, load-bearing capacity>F900, meeting European standard EN124;
Manhole cover size: 2016mm x 1046mm
Lifting height: no more than 1200mm
Panel: 304 stainless steel
Lifting force: no more than 5kg
Lifting method: Manual
Fixed configuration: one set of emergency drainage system unit, one set of dehumidification system unit, one set of emergency maintenance lighting unit, one set of safety control unit, electrostatic grounding unit, 380V/220V/36V/50Hz industrial frequency power supply unit (socket), and compressed air unit.
Optional configuration: DC28V direct current power supply unit.
Application scenario: It is recommended to be used in aircraft maintenance hangars, aircraft manufacturing plants, and aerospace manufacturing plants.

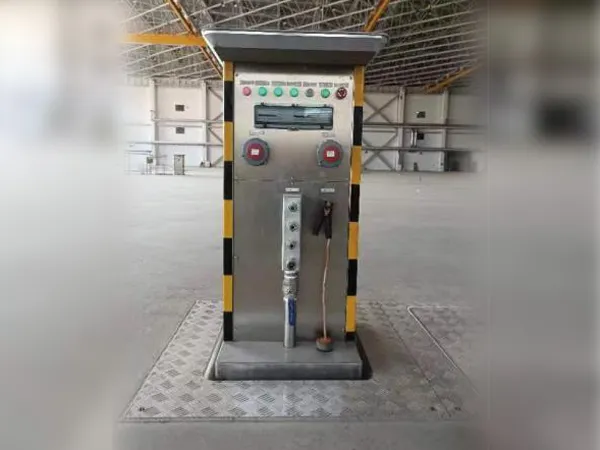

The Pop-up industrial frequency electricity and gas source pit is a cutting-edge ground support solution engineered to provide on-demand access to high-voltage power and industrial-grade gas lines in aviation, manufacturing, and high-intensity operations environments. Designed for maximum efficiency, safety, and space-saving integration, this innovative system redefines how critical utilities are delivered in modern maintenance hangars, production workshops, and airport aprons.
This comprehensive document provides an in-depth introduction to the pit's structure, key components, functions, advantages, and real-world applications. It outlines the technological innovations that underpin this system and demonstrates how it meets the ever-growing demand for secure, accessible, and environmentally compliant infrastructure.
At the core of the Pop-up pit system is a design ethos centered around accessibility, reliability, and compact deployment. The pit is installed flush with the ground surface and remains invisible until activated. When needed, it rises smoothly to present an ergonomic interface for utility connection. The retractable mechanism ensures safety, space optimization, and reduced risk of damage or tripping hazards.
Key design tenets include:
Modularity: Flexible configurations support diverse voltage levels, current ratings, and gas types.
Durability: Aerospace-grade materials and IP-rated seals offer superior protection against environmental degradation.
Efficiency: Rapid deployment reduces setup time and boosts operational throughput.
Integration: Compatibility with SCADA, IoT, and remote monitoring platforms for smart infrastructure support.
Pop-Up Mechanism
Electrically actuated lift system or manual-hydraulic backup.
Anti-corrosion stainless steel or aluminum housing.
Weather-sealed gaskets ensure water, dust, and debris resistance.
Locking system to prevent unintended activation or tampering.
Electrical Subsystem
Multi-voltage outputs: 380V/220V three-phase industrial power with configurable frequency.
Industrial socket interfaces compliant with IEC and aviation standards.
Integrated circuit breakers, surge arrestors, and load monitoring sensors.
Optional ground fault protection and thermal overload safeguards.
Gas Supply Module
High-pressure connections for nitrogen, oxygen, or compressed air.
Redundant pressure regulators, gas flow meters, and safety shutoff valves.
Color-coded piping and fittings to prevent cross-contamination.
Leak detection sensors and automatic shutdown protocol.
Vault Construction
Reinforced concrete or composite chamber lined with insulation.
Integrated water drainage system and pressure equalization vents.
Maintenance access panels for inspection and repairs.
Control Interface
Touchscreen HMI with real-time status readouts.
Manual override switches and remote-control capability.
Optional integration with building automation systems.
LED indicators for system diagnostics and safety alerts.
The pop-up pit is designed for a wide range of field and indoor applications. It supports:
Simultaneous electric and gas utility delivery.
On-demand access with rapid deployment and retraction.
Customizable utility outlets for different equipment needs.
High-volume throughput for busy operational hubs.
Common use cases include:
Aircraft maintenance bays requiring rapid switchovers.
Assembly lines needing pneumatic tool and power tool connections.
Airport aprons supporting ground service equipment (GSE).
Testing labs with variable current and gas demand cycles.
Site Assessment: Soil condition, floor loading, and spatial layout must be evaluated.
Utility Trunking: Secure conduits for both electrical and gas lines.
Power and Gas Feeds: Separate routing for safety and redundancy.
Testing and Commissioning: Full functional validation post-installation.
Space Optimization: Eliminates clutter and floor-level obstructions.
Safety: Reduced risk of tripping or accidental disconnection.
Efficiency: Streamlined servicing workflows and reduced downtime.
Durability: Long lifecycle with minimal maintenance needs.
Scalability: Adaptable to different environments, utility types, and output levels.
SCADA and IoT Compatibility: Enables centralized control and performance tracking.
Predictive Maintenance: Alerts for wear, overuse, or component fatigue.
Energy Monitoring: Tracks usage trends and identifies inefficiencies.
Secure Access Control: RFID or biometric user authentication.
Low-Emission Operation: Reduces reliance on mobile generators.
Eco-Materials: Use of recyclable and non-toxic components.
Noise Reduction: Acoustic dampening materials and silent operation.
International Standards: Meets CE, ISO, and other regional compliance norms.
Scheduled Maintenance: Quarterly checks of hydraulic, electrical, and gas systems.
Component Replacement: Modular design enables fast, part-by-part replacement.
Remote Diagnostics: Enables offsite troubleshooting.
User Training: Operation manuals, virtual modules, and hands-on sessions.
Frankfurt International Airport: Reduced aircraft turnaround time by 15% using pop-up systems.
Boeing Maintenance Facility: Integrated over 20 units for electric/gas service in a central hub.
Siemens Robotics Lab: Enabled fast configuration changes between gas and electric power setups.
Hydrogen Line Integration: Preparing for next-gen aviation fuel support.
AI-Driven Maintenance: Advanced failure prediction using machine learning.
Augmented Reality Interfaces: Visual diagnostics and technician guidance.
The Pop-up industrial frequency Electricity and gas source Pit represents a fusion of smart infrastructure, advanced engineering, and user-centered design. Its ability to deliver mission-critical utilities quickly, safely, and efficiently makes it a cornerstone technology for future-ready facilities. Whether in aerospace, manufacturing, or smart logistics, this system provides the reliability, flexibility, and intelligence required for high-performance operations.
As industry demands evolve, the pop-up pit’s modularity, digital connectivity, and environmental design ensure it will remain a vital asset in tomorrow’s ground service ecosystems.
Proper installation of lift shafts is essential for ensuring safety, reliability, and efficiency in modern buildings. This guide provides a step-by-step approach to installing lift shafts, covering planning, material selection, installation procedures, and safety considerations.
Before installation, conduct a thorough site inspection to evaluate structural integrity, space availability, and compliance with building regulations.
Ensure that the lift shaft design aligns with architectural blueprints and engineering specifications. All dimensions and load-bearing capacities should be verified.
Obtain necessary approvals and permits from local authorities. Ensure adherence to safety standards such as ISO 25745 and EN 81.
Use high-strength steel and reinforced concrete for durability. Lightweight composite materials can enhance efficiency in specific installations.
Choose fire-resistant materials to prevent flame spread. Soundproofing materials help minimize noise and vibration.
For installations in humid environments, use corrosion-resistant coatings and stainless steel components to prolong longevity.
Prepare the foundation based on load-bearing requirements.
Construct reinforced concrete walls to support vertical loads.
Install seismic dampers in earthquake-prone areas.
Assemble the steel framework to provide structural support.
Install panels or glass walls if a transparent shaft is required.
Ensure proper alignment using precision tools.
Secure guide rails along the shaft walls for smooth lift operation.
Align hoist mechanisms to prevent misalignment and jerky movement.
Test guide rail stability before proceeding.
Mount the lift cabin onto the guide rails.
Install counterweights for balanced movement.
Set up the motor and pulley system at the top of the shaft.
Connect power supply and control systems.
Integrate emergency braking systems and alarm mechanisms.
Ensure compliance with local electrical codes.
Conduct test runs with incremental loads.
Measure acceleration, deceleration, and emergency braking responses.
Check fireproofing, ventilation, and seismic resistance.
Verify operational safety measures such as emergency stops and backup power.
Obtain final inspections from regulatory authorities.
Secure necessary certification before opening for public use.
Schedule periodic maintenance checks for wear and tear.
Use IoT monitoring for real-time performance analysis.
Implement regenerative braking systems to recycle energy.
Consider hybrid or solar-powered solutions for sustainability.
Utilize AI-driven diagnostics to detect potential failures.
Automate routine inspections to minimize downtime.
A well-installed lift shaft ensures safety, efficiency, and longevity in modern buildings. By following proper planning, material selection, installation procedures, and safety protocols, engineers and contractors can optimize performance while adhering to global standards. As technology advances, lift shaft installations will continue evolving with smart, energy-efficient, and sustainable innovations.
Proper usage of lift shafts ensures safety, efficiency, and longevity. Whether in commercial buildings, residential complexes, or industrial settings, understanding the best practices for lift shaft operation can enhance user experience and reduce maintenance issues. This guide provides essential tips for safe and effective lift shaft usage.
Learn how to operate the lift using the control panel.
Understand emergency buttons, including stop and alarm functions.
Follow weight capacity guidelines to prevent overload.
Familiarize yourself with key parts such as guide rails, counterweights, and emergency brakes.
Recognize signs of malfunction, such as unusual noises or sudden stops.
Report maintenance concerns to building management promptly.
Always check that the lift is level with the floor before stepping in or out.
Allow passengers to exit before entering.
Avoid blocking the sensor area to ensure doors close properly.
Hold onto handrails if available, especially in high-speed elevators.
Stand clear of doors and avoid leaning against them.
Keep heavy or bulky items away from door tracks to prevent obstruction.
If the lift stops unexpectedly, stay calm and use the emergency alarm.
Do not attempt to force doors open or exit without professional assistance.
Wait for emergency personnel to provide instructions and assistance.
Use staircases for short-distance travel to reduce congestion.
Avoid unnecessary stops by pressing only the required floor button.
Encourage group travel to minimize excessive lift usage.
Schedule large deliveries during off-peak hours.
Use priority lifts when available for accessibility needs.
Follow building policies for lift usage during maintenance hours.
Report irregular movements, unusual noises, or frequent breakdowns.
Notify building management about sensor malfunctions or door obstructions.
Avoid tampering with control panels or safety features.
Do not leave trash or liquids inside the lift to prevent floor damage.
Avoid scratching panels or misusing buttons.
Encourage responsible usage to maintain a clean and functional lift environment.
Use designated service lifts for freight transportation.
Optimize travel schedules for employees in commercial buildings.
Implement lift grouping strategies in high-rise structures to improve efficiency.
Select lifts with regenerative braking systems to conserve energy.
Ensure that lifts are programmed with standby mode to reduce power consumption when idle.
Support green building initiatives by using eco-friendly lift technologies.
Advanced lifts will predict user behavior to optimize travel routes.
AI-integrated lifts can adjust speed and capacity based on demand.
Future lifts will feature contactless controls, enhancing hygiene and accessibility.
Mobile app integration will allow users to call lifts remotely.
Next-generation lifts will move horizontally and diagonally, revolutionizing building designs.
These innovations will enhance accessibility and reduce wait times.
Effective usage of lift shafts ensures safety, convenience, and efficiency. By following best practices for operation, safety, and maintenance, users can optimize lift performance and contribute to a smooth and reliable transport system. With future advancements in AI, automation, and energy efficiency, lift shaft technology will continue to evolve, offering smarter and safer experiences for passengers.
